VRMesh Survey

An advanced solution for automatic point cloud classification and feature extraction. It classifies vegetation, building roofs, and ground points in LiDAR data or from UAV images. It detects building footprints, powerlines, poles, tree crowns, curbs and railways. It also helps you detect lines and extract pipes from point clouds.

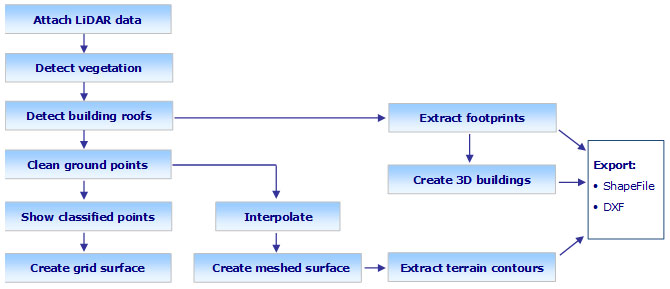

Unlike traditional point cloud classification workflows that have to extract ground points first before classifying vegetation and buildings, the first fundamental step in VRMesh Survey is to detect vegetation. The major benefit of our workflow is its unique ability to automatically classify point clouds under extreme variations in terrain, no matter the data is gathered from steep slopes covered with dense vegetation or areas where there is very few ground points available.

Features and Benefits

  • Adjust LiDAR strips in a simple and fast way

  • Automatically extract ground points on steep slops

  • Automatically detect hidden man-made structures

  • Automatically extract building footprints from dense urban areas

  • Automatically extract powerlines/poles/tree crowns/railways

  • Quickly pick a line along a ridge, railway, powerline, road markings, etc.

  • Provide powerline detection and clearance analysis tools

  • Provide manual classification tools in a cross-section view

  • Generate grid surface and export to Esri ASCII Grids

  • Include Construction Module

Working Examples:

>> Clean Up and Organize Point Clouds

Watch YouTube Movie

>> Powerline Analysis

Watch YouTube Movie Watch YouTube Movie

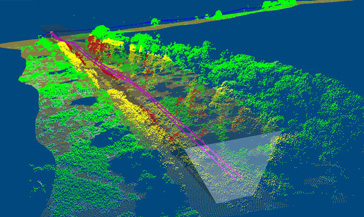

Detect Powerlines/Transmission Towers Detect Powerlines
Watch YouTube Movie
Powerline corridor analysis Powerline corridor analysis
* Image data courtesy of Star Vision Ltd

>> Extract poles and tree crowns

Measure track gauge Measure distances/areas
Extract poles/tree crowns from ground scans Extract tree crowns from airborne data

>> Strip Adjustment of UAV/Drone LiDAR Data

* LiDAR data courtesy of Deodetics

* LiDAR data courtesy of Phoenix LiDAR Systems

>> Parameter Setting for Large Dataset

Watch YouTube Movie

>> Trace Road Markings Based on Intensity

Watch YouTube Movie

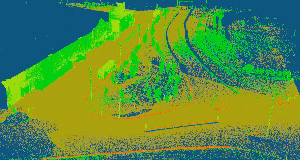

>> Feature Extraction

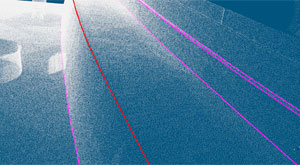

Pick a line Extract breaklines
Pick ridge, powerline, road markings, etc. Extract breaklines from point clouds

>> Measurement

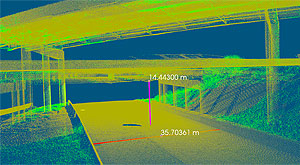

Measure track gauge Measure distances/areas
Measure track gauge Measure distances/areas

>> Extract building footprints and create 3D buildings

Extract Footprints

* This video also shows how to export a grid surface and 3d buildings to AutoCAD Civil 3D.
* Download the results here, including a grid surface (*.asc), footprints (*.shp), and 3D buildings (*.shp).

>> Feature extraction in a local region

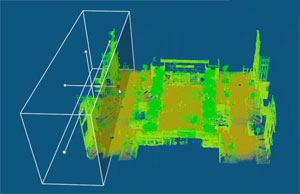

Feature Extraction

>> Detect curves in point clouds

Curve Detection

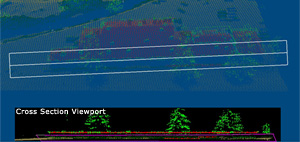

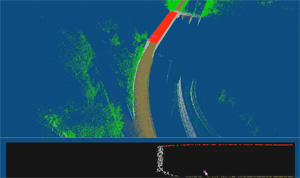

>> Trace curves in cross section viewport

Trace Curves

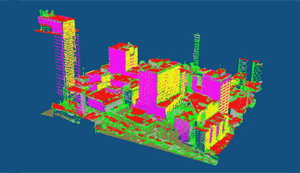

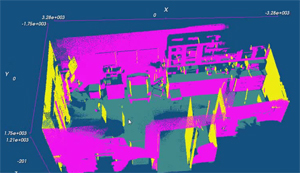

>> Detect hidden man-made structures

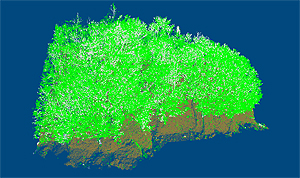

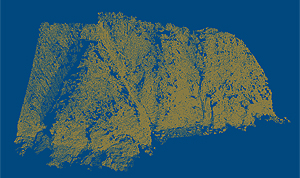

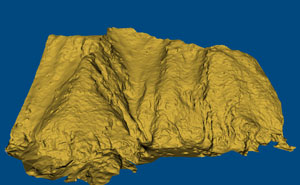

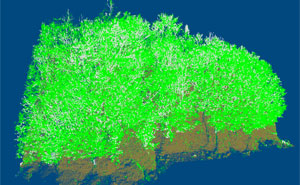

>> Extract ground points on steep slops

>> Point cloud classification

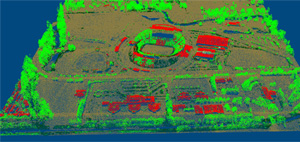

Automatic point cloud classification
Automatic classification Manual classification in a cross-section view

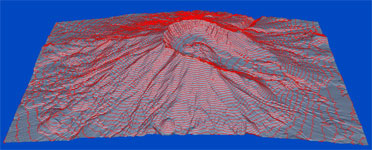

>> Extract Terrain Contours
